GROUP THEORY SYMBOL

GODirection

GODirection
is an option to indicate a direction in a three-dimensional plot of clusters.

DetailsDetails

  • Typical settings for GODirection are:
  • {0,0,0}A direction is not defined
    scale*{a,b,c}The corresponding direction is indicated in the plot
  • Please note: The direction has to be scaled in an appropriate way to be in correspondence with the cluster dimensions. This can be done if one specifies the direction with {a,b,c} and uses scale to scale the vector approprialtely.
  • This option is used by: GTBuckyBall bullet GTPlotCluster

ExamplesExamplesopen allclose all

Basic Examples  (2)Basic Examples  (2)

First load the package:

In[1]:=
Click for copyable input

Plot a cluster

In[2]:=
Click for copyable input

Load the structure from a file and extract the the structure for Barium titanate.

In[3]:=
Click for copyable input

Generate the cluster.

In[4]:=
Click for copyable input

Now the cluster can be plotted:

In[5]:=
Click for copyable input
Out[5]=
In[6]:=
Click for copyable input
Out[6]=

If we cut out the xy plane of the cluster a 2D plot is sufficient for the plane

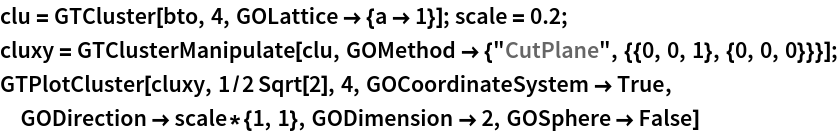

In[7]:=
Click for copyable input

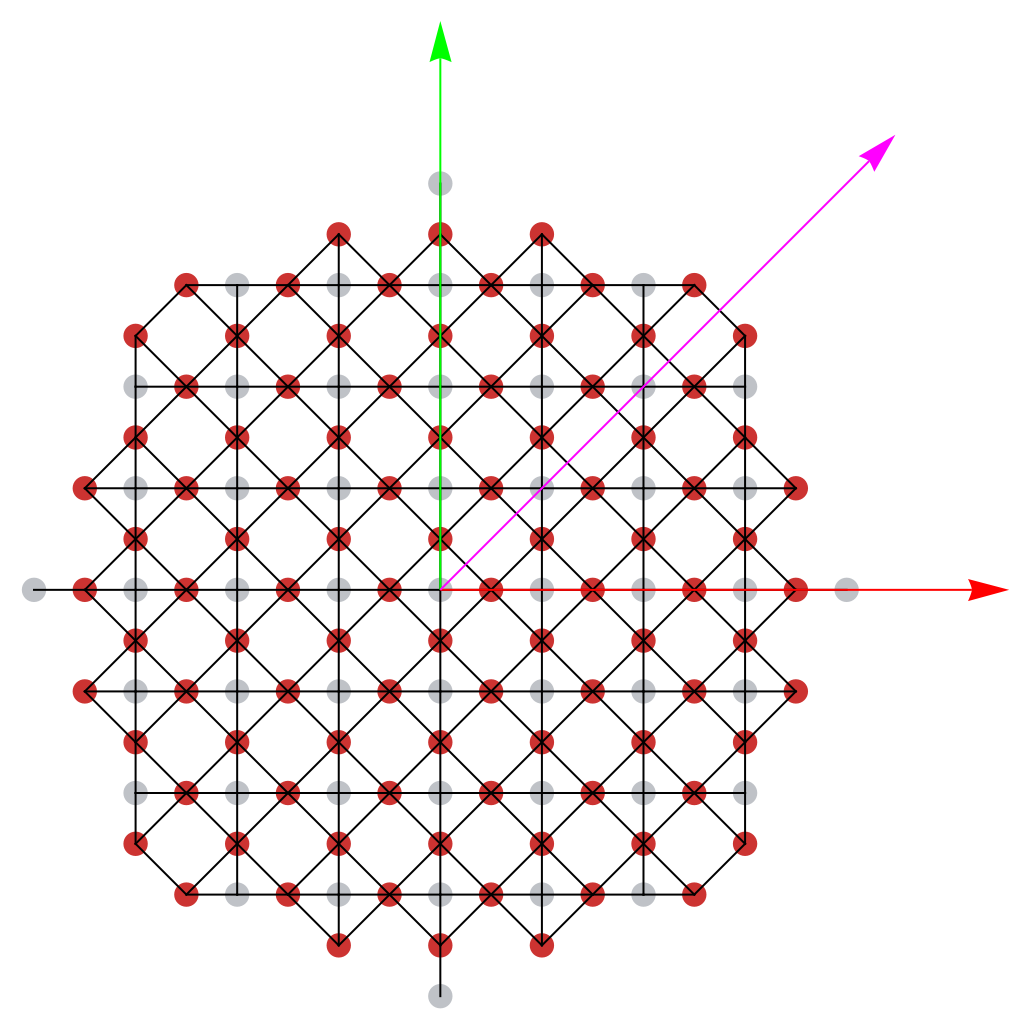

Out[7]=

Plot a buckyball

In[1]:=
Click for copyable input

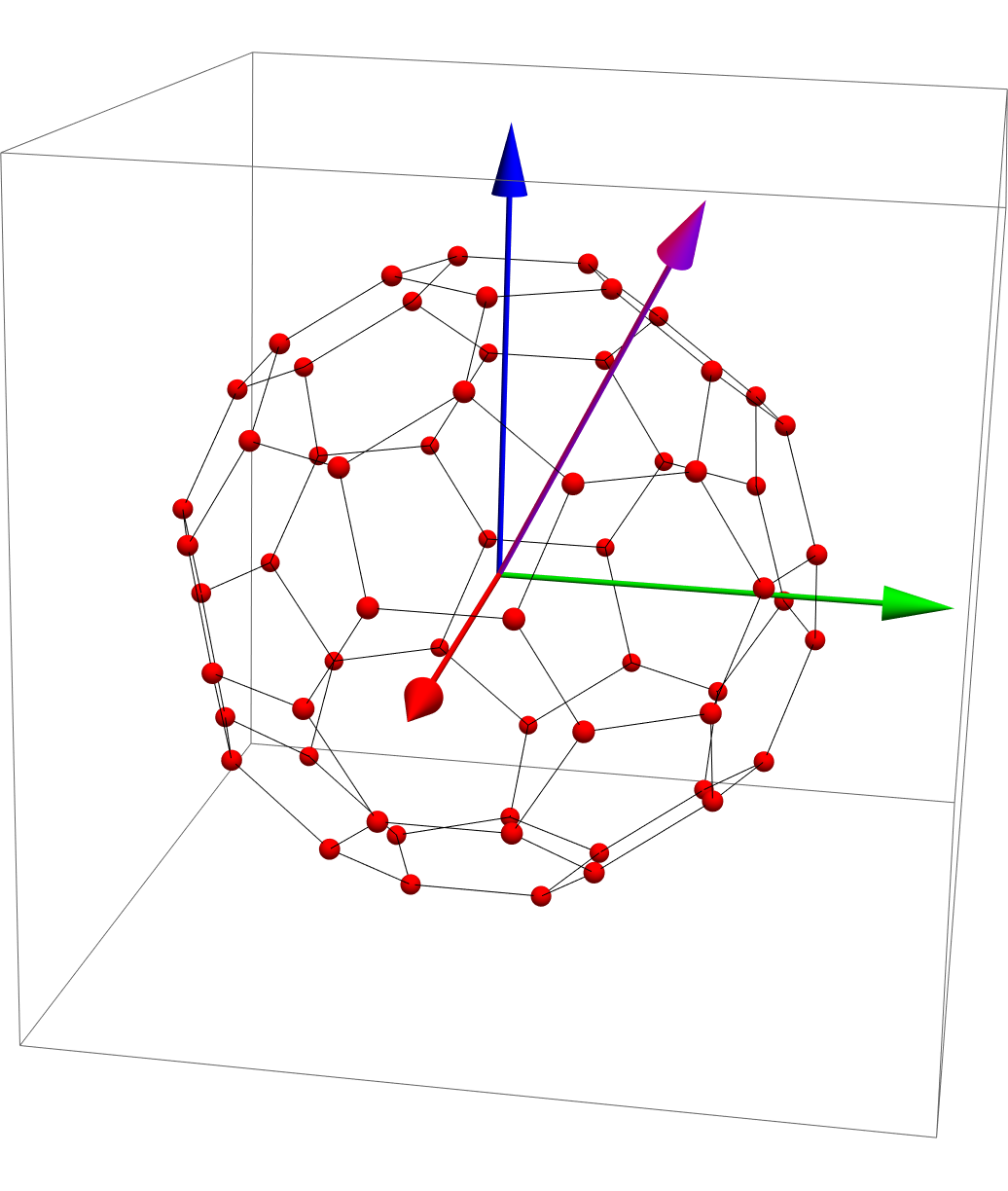

Out[1]=
In[2]:=
Click for copyable input
Out[2]=
