GROUP THEORY SYMBOL

GTVibTbToPhonon

GTVibTbToPhonon[p-Hamiltonian, shells]
transforms a tight-binding p-Hamiltonian in a dynamical matrix, taking into account shells.

DetailsDetails

  • The dynamical matrix to calculate phonon spectra for solids in a central force model can be generated starting from a tight-binding p-Hamiltonian.
  • The hopping parameters (ppπ) have to be set to zero. The elements (ppσ) have to be substituted by the spring constants and the masses. The command performs this transformation.
  • The on-site elements in the dynamical matrix are not independent like in the tight-binding Hamiltonian, but have to be calculated in dependence on the spring constants and masses.
  • The following options can be given:
  • GOTbBasis0Supresses superscripts with element names
    GOVerboseTrueControls the output of additional information
  • See: W. Hergert, M. Geilhufe, Group Theory in Solid State Physics and Photonics. Problem Solving with Mathematica, chapter 13.2.2
  • See for the idea: R.M. Martin, Electronic Structure - Basic Theory and Practical Methods, Cambridge University Press 2004, p. 404

ExamplesExamplesopen allclose all

Basic Examples  (1)Basic Examples  (1)

First load the package:

In[1]:=
Click for copyable input

Set the directory to read data.

In[2]:=
Click for copyable input

Read p-Hamiltonian for fcc structure from file.

In[3]:=
Click for copyable input

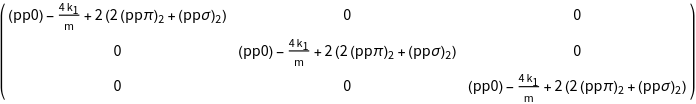

Out[3]=

The p-Hamiltonian is given up to next-nearest neighbor interactions. The interaction in the dynamical matrix is restricted to nearest neighbor interactions.

In[4]:=
Click for copyable input

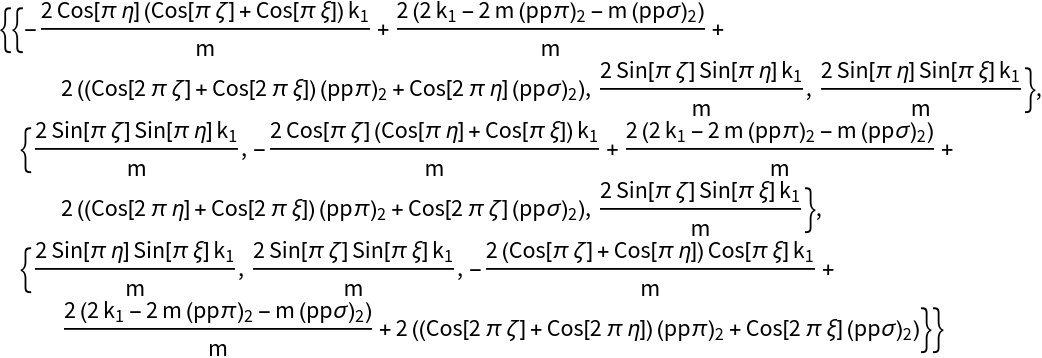

Out[4]=

Options  (2)Options  (2)

Top
