GTTbSymmetryBands

GTTbSymmetryBands[bands,klist,wave,min,max,group,recipbasis,basis] performs a symmetry analysis for an entire band structure. The bands in file bands and the wavefunctiotions in wave. Bands are analized for band numbers [min,max]. group is the point group of the systemwith reciprocal basis recipbasis. Basis defines the basis of the crystal.

DetailsDetails

  • The following options can be given.
  • GOVerboseFalseControls output of additional information
    GOIrepNotation"Bouckaert"Notation of irreducible representation
    PlotStyle{{Thickness[Tiny], GrayLevel[0]}}representation of bands in graph
    JoinedTruestandard option of ListPlot
    PlotRangeAllstandard option of ListPlot
    GOLabelShift{0.05, 0.02}a global label shift can be applied to all labels
    GOLabelStyle{}the style of the labels can be changed
    GOPlotTruedecides if a plot of the bands ins presented
    FrameLabel{"", "Energy (eV)"}standard option of ListPlot
    PlotLabel"Band structure"standard option of ListPlot
    GOSpinOrbitFalsedecides if spin-orbit is included
    GOOrbitalConstructionTrue
    GOPrecision4sets the precisionsets the precision
  • See: W. Hergert, M. Geilhufe, Group Theory in Solid State Physics and Photonics. Problem Solving with Mathematica, chapter 9.6

ExamplesExamplesopen allclose all

Basic Examples  (1)Basic Examples  (1)

First load the package:

In[1]:=
Click for copyable input

Give structural information anf define the point group

In[2]:=
Click for copyable input

Read the fcc Hamiltonian with fcc-basis

In[3]:=
Click for copyable input

Parmater for Au are used

In[4]:=
Click for copyable input

Prepare Hamiltonina for calculation

In[5]:=
Click for copyable input

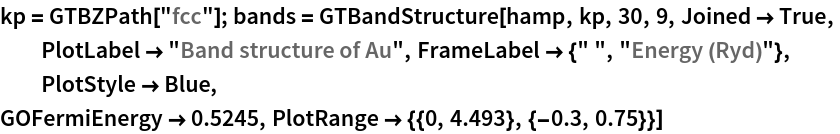

Prepare a band structure plot to check if all is correct.

In[6]:=
Click for copyable input
Out[6]=
In[7]:=
Click for copyable input

Create band structure data

In[8]:=
Click for copyable input
Out[8]=

The basis is

In[9]:=
Click for copyable input

Perform the symmetry analysis

In[10]:=
Click for copyable input
Out[10]=

The position of the levels canbe improved by theinteractive drawing tools or by means of GTBandsPlotImprove
