GOEigenvectors

GOEigenvectors
is an option to control whether the eigenvectors will be calculated.

DetailsDetails

  • The Hamiltonians in GTBands are expressed in matrix form. To calculate the band structure a matrix eigenvalue problem has to be solved. Usually only the eigenvalues are calculated. For further investigations (symmetry analysis, partial density of states) also the eigenvectors have to be known.
  • Typical values for GOEigenvectors are:
  • TrueEigenvectors are calculated
    FalseEigenvectors are not calculated
  • This option is used by: GTBands

ExamplesExamplesopen allclose all

Basic Examples  (1)Basic Examples  (1)

First load the package:

In[1]:=
Click for copyable input
In[2]:=
Click for copyable input

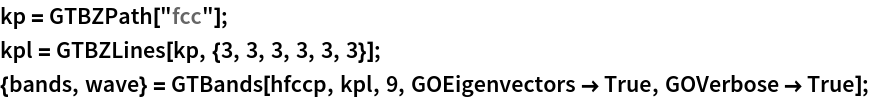

Set the k-path

In[3]:=
Click for copyable input

Only the eigenvalues are calculated

In[4]:=
Click for copyable input
In[5]:=
Click for copyable input
Out[5]=
In[6]:=
Click for copyable input
Out[6]=

The bands are calculated along a standard path with only a few points. The calculated eigenvalues are stored in bands, and the corresponding eigenvectors in wave.

In[7]:=
Click for copyable input

Eigenvectors at Γ:

In[8]:=
Click for copyable input
Out[8]=

The first part contains the k-vector. The second part is a list of eigenvectors.

In[9]:=
Click for copyable input
Out[9]//MatrixForm=

A list of single k-points can be provided.

In[10]:=
Click for copyable input
In[11]:=
Click for copyable input
In[12]:=
Click for copyable input
Out[12]=
In[13]:=
Click for copyable input

We get the same eigenvectors for the Γ point.

In[14]:=
Click for copyable input
Out[14]//MatrixForm=
